VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Fresno, CA | Meridian Windows and Doors Fresno

The VLX 100 Swing / Entry Door is a modern aluminum single entry door built around a minimalist frame and a multi-point locking system. It’s the door Fresno homeowners choose when they want clean sightlines, a substantial feel, and hardware that actually secures the opening. As an authorized ViewLux installation partner in Fresno, Meridian Windows and Doors Fresno supplies and installs this door to the manufacturer’s exacting specification. If you’re planning a new build in Clovis, remodeling a mid-century ranch in Fig Garden, or replacing a tired entry door in Tower District, this is a door worth pricing. Call (559) 272-4716 for a project quote.

Call (559) 272-4716

Product Overview – VLX 100 Swing / Entry Door

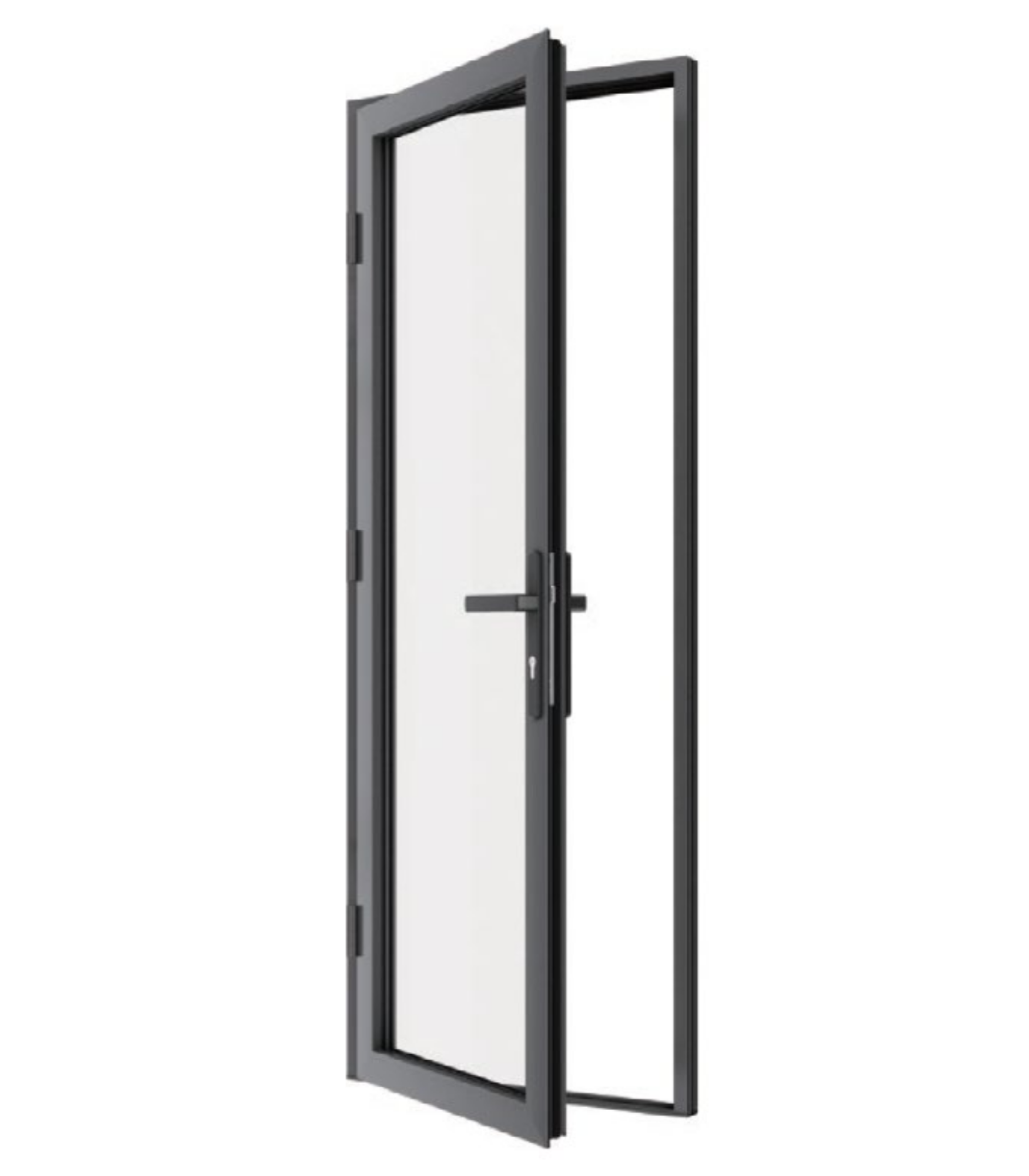

The VLX 100 is a single panel swing door with a 2.56-inch profile width, which gives it the slim sightlines people expect from a contemporary aluminum system without sacrificing structural integrity. The frame carries a 0.098-inch wall thickness, a measurement that reads like a spec sheet number but translates to something you feel the first time you operate the door: solid, weighted, and precise. This isn’t a hollow-core door dressed up to look modern. It’s an engineered aluminum entry system.

Architecturally, the VLX 100 fits cleanly into the kinds of homes being built and renovated across Fresno and the surrounding Central Valley. We see it specified on modern farmhouse builds in Harlan Ranch, on sleek single-story remodels in Woodward Park, and on custom projects up in Madera Ranchos where the owners want indoor-outdoor flow without compromising on security. The minimalist frame means more glass and less metal, so natural light enters while the door still reads as a defined, intentional threshold.

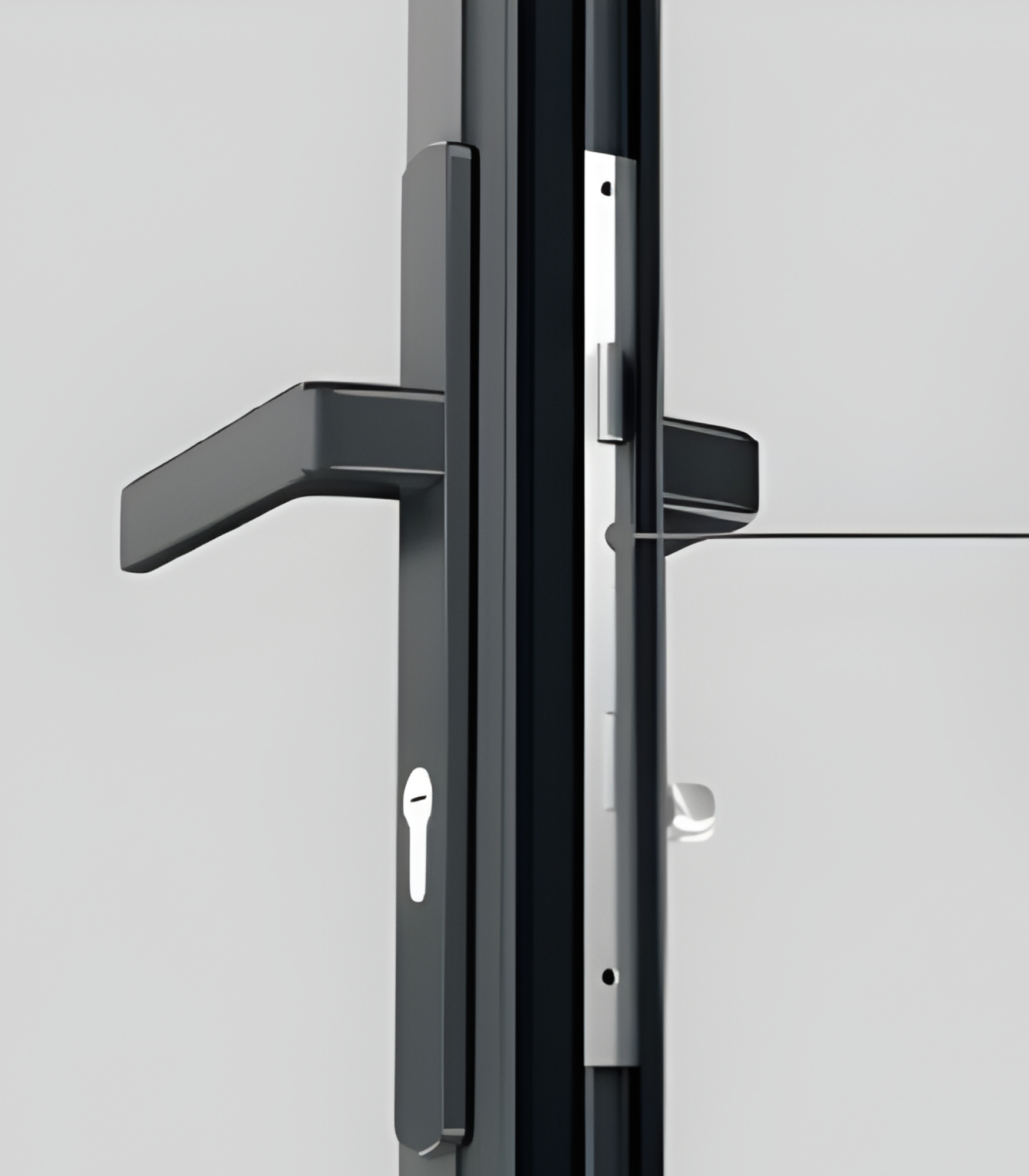

The multi-point locking system is the headline feature buyers remember. Instead of a single deadbolt point, the hardware engages at multiple points along the frame when you lift the handle and turn the key. That spreads force across the door edge and anchors the panel into the jamb, which matters in a city where every homeowner wants a front door that resists both weather and unwanted entry. Meridian Windows and Doors Fresno has installed enough of these doors to know that clients consistently describe the closing feel as one of the best parts of the purchase. There’s a quiet, machined confidence to it.

Technical Specifications

Here are the VLX 100’s core specifications, in plain language. These are the numbers that matter when you’re comparing doors side by side.

• Frame wall thickness: 0.098 inches – heavier than entry-level aluminum, which is why the door doesn’t flex or rattle.
• Profile width: 2.56 inches – slim enough for a contemporary look, deep enough for structural performance.
• Maximum panel span: Up to 48 inches wide – covers most single entry openings in Fresno homes.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated – choose based on privacy, energy performance, and safety.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood – six finishes covering the full design spectrum from modern to warm.
• Screen options: Retractable Screen or None – the retractable screen disappears into the frame when not in use.
• Panel type: Single swing entry door configuration.

Performance Features

Thermal Efficiency
The VLX 100 uses thermal break technology that separates the interior and exterior aluminum faces, slowing conductive heat transfer through the frame. In a Fresno summer, that’s the difference between a door that bakes and one that merely warms. NFRC-rated energy performance data is available for the exact glass package you select, whether that’s a Low-E insulated unit or a simpler clear glazing option.

Acoustic Performance
Aluminum is notorious for transmitting sound, which is why the VLX 100’s construction matters. The thick frame wall, combined with laminated glass when selected, noticeably reduces street noise and neighborhood conversation. For homes near Shaw Avenue, Herndon, or any of the busier Fresno corridors, laminated glass is the upgrade that makes the living room feel like it’s a block further from traffic.

Airtightness & Weather Seal
Proper perimeter sealing is built into the installation standard, not just the product. Meridian Windows and Doors Fresno installs every VLX 100 with AAMA 812 compliant low-expansion foam sealant around all perimeter joints. That means the gap between the door frame and rough opening is genuinely sealed, not just covered with trim. Air leakage drops, drafts disappear, and the door’s rated air performance holds.

Waterproofing
A front door in Fresno has to handle driving rain in January and irrigation overspray year-round. The VLX 100’s frame design channels water away from the threshold, and the AAMA-compliant installation method includes sill detailing that directs moisture outward. This is where install quality shows: a door that’s square, level, and properly sealed won’t wick water into the subfloor or the wall cavity.

Wind Resistance
Central Valley wind events can be sudden and strong, particularly during winter storm fronts moving off the coast. The VLX 100 is wind-load rated to meet local climate requirements, which means the panel, hardware, and frame have been engineered to handle sustained pressure without deflection that compromises the seal. Laminated glass adds another layer of performance for openings with higher exposure.

Security & Hardware

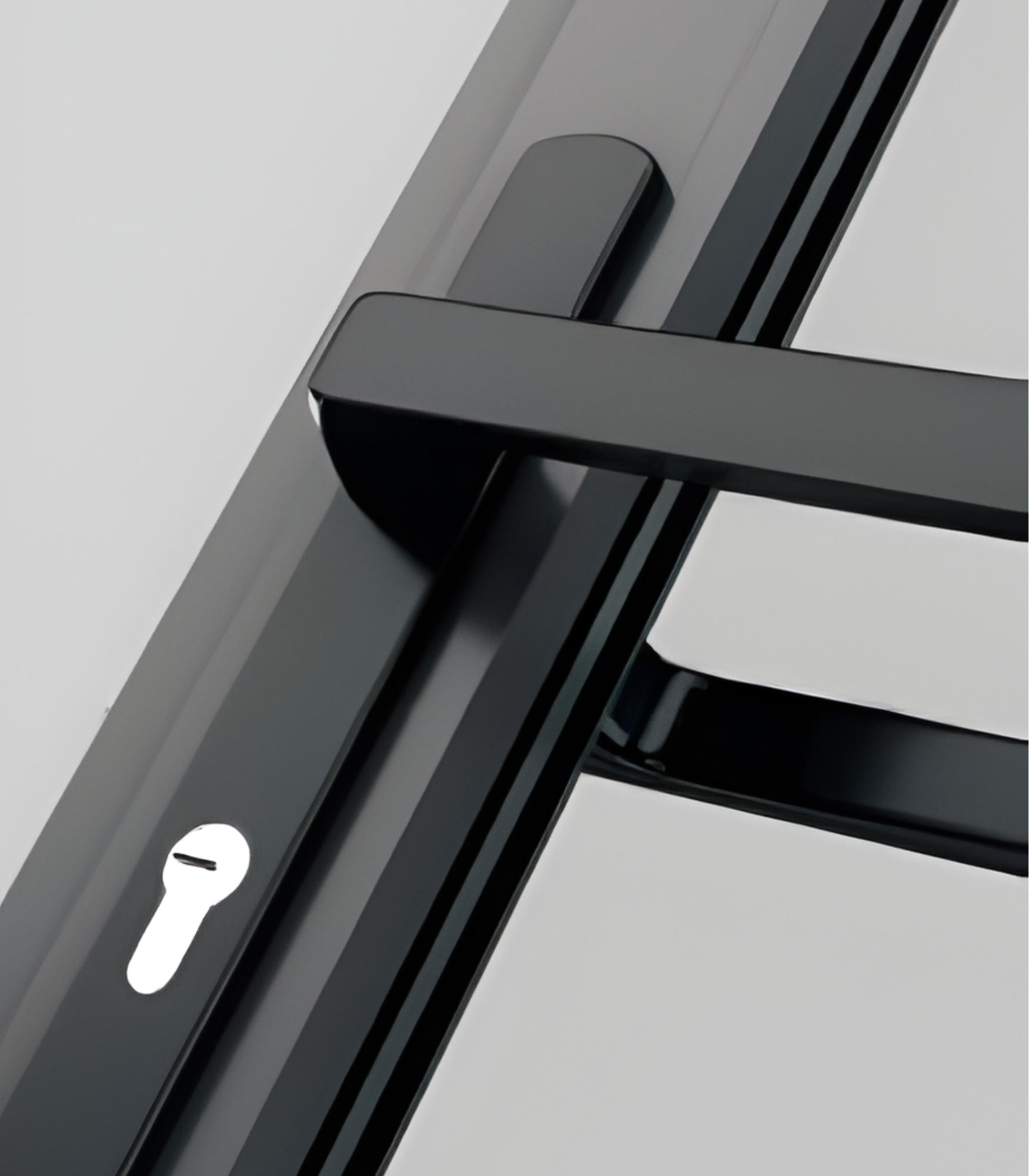

The multi-point locking system engages along the full height of the panel rather than a single point. Combined with the 0.098-inch frame wall and structural aluminum, the VLX 100 resists forced entry far more effectively than a traditional wood or fiberglass door with a single deadbolt. For homeowners who want a modern glass-forward entry without feeling exposed, this door answers the concern directly.

Color & Glass Options

The VLX 100 comes in six finishes, and the right choice depends on the home’s architectural language. Premium Black reads sharp and architectural. We install a lot of those on modern builds and updated ranchers where the contrast against a light stucco exterior is intentional. Pure White suits the California Spanish and Mediterranean styles that dominate older Fresno neighborhoods like Old Fig Garden. Anodized Silver has an industrial honesty that lands well on contemporary two-story homes. Bronze and Champagne offer warmer metal tones that pair beautifully with craftsman details and wood accents. Teak Wood is a finish that mimics the warmth of natural wood while keeping aluminum’s durability, which makes it a smart choice for homeowners who love the look of a wooden entry door but don’t want the maintenance.

Glass selection depends on privacy, safety, and energy priorities. Clear glass maximizes daylight and visibility. Frosted and Obscure glass provide privacy while still allowing light, which works well for doors that face neighbors or the street. Low-E glass is the energy performance option, reducing solar heat gain during Fresno’s long cooling season. Tempered glass is the safety standard: it breaks into small granules rather than dangerous shards. Laminated glass adds impact resistance, sound dampening, and UV protection, and it’s the upgrade we recommend most often for entry doors in this climate.

Installation by Meridian Windows and Doors Fresno in Fresno

An excellent door installed poorly is a poor door. The VLX 100’s performance numbers only hold if the frame is set correctly, and that’s the entire reason Meridian Windows and Doors Fresno exists. We’re an authorized ViewLux installation partner, not a general contractor who occasionally hangs a door. Installation is what we do every day, and it’s done to the AAMA 2400/2410 installation standard, which is the recognized benchmark for window and door installation in residential construction.

Every VLX 100 installation in Fresno starts with a pre-install inspection of the rough opening. We check the framing for square, level, and plumb before the door ever comes off the truck. If the opening needs corrective work, it happens before installation, not after. The door is set shimmed and anchored so the panel operates cleanly on day one and stays that way. We apply AAMA 812 compliant low-expansion foam to every perimeter joint. We install the sill with proper drainage detailing. Then we run a water test on the completed opening and walk through the operation of the multi-point lock with the client before we call the job finished.

Fresno’s climate demands this level of care. Our summers punish poorly sealed openings. Our winters bring rain squalls that find every shortcut. Building codes in Fresno County follow California energy and structural requirements, and a correctly installed aluminum door meets those standards the way it was engineered to. One thing homeowners should know: improper installation can void the manufacturer’s warranty. If the door isn’t installed to spec, no finish warranty or hardware warranty applies. That’s the practical argument for using an authorized partner rather than the lowest bid.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Fresno

You’re reading this page because the VLX 100 caught your attention. The next step is a free on-site measurement and a written line-item quote with no surprises. Contact Meridian Windows and Doors Fresno at (559) 272-4716 to start your project or ask questions about finishes, glass options, and lead times. We measure, we quote, and we install to standard.

Written by the team at Meridian Windows and Doors Fresno, authorized ViewLux installation partner serving Fresno and surrounding Central Valley communities.
