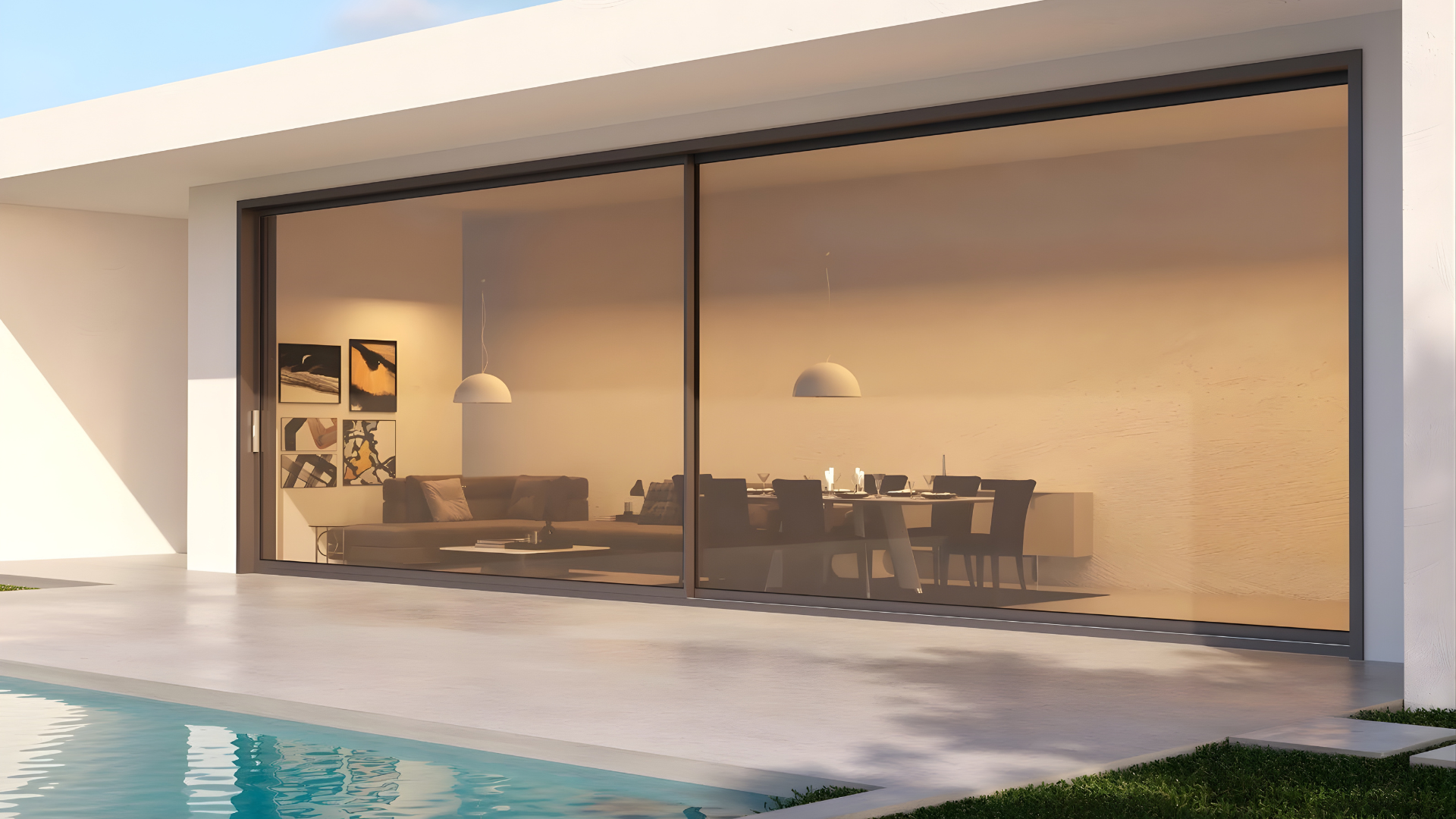

The VLX 150 is a large-span aluminum sliding door built for homeowners in Fresno who want wide openings without sacrificing strength, seal, or smooth operation. We install this ViewLux door for clients from Fig Garden to Clovis and out toward Madera Ranchos, and the feedback is consistent: the door glides like a lighter unit but closes like a vault. If you’re planning an indoor-outdoor living space that demands a 12-foot, 16-foot, or even 24-foot opening, this is the door our team recommends first. Meridian Windows and Doors Fresno is an authorized installation partner for ViewLux, which means your warranty stays intact and your install is done to AAMA standards. Call (559) 272-4716 to schedule a free on-site measurement.

Product Overview – VLX 150 Heavy-Duty Sliding Door

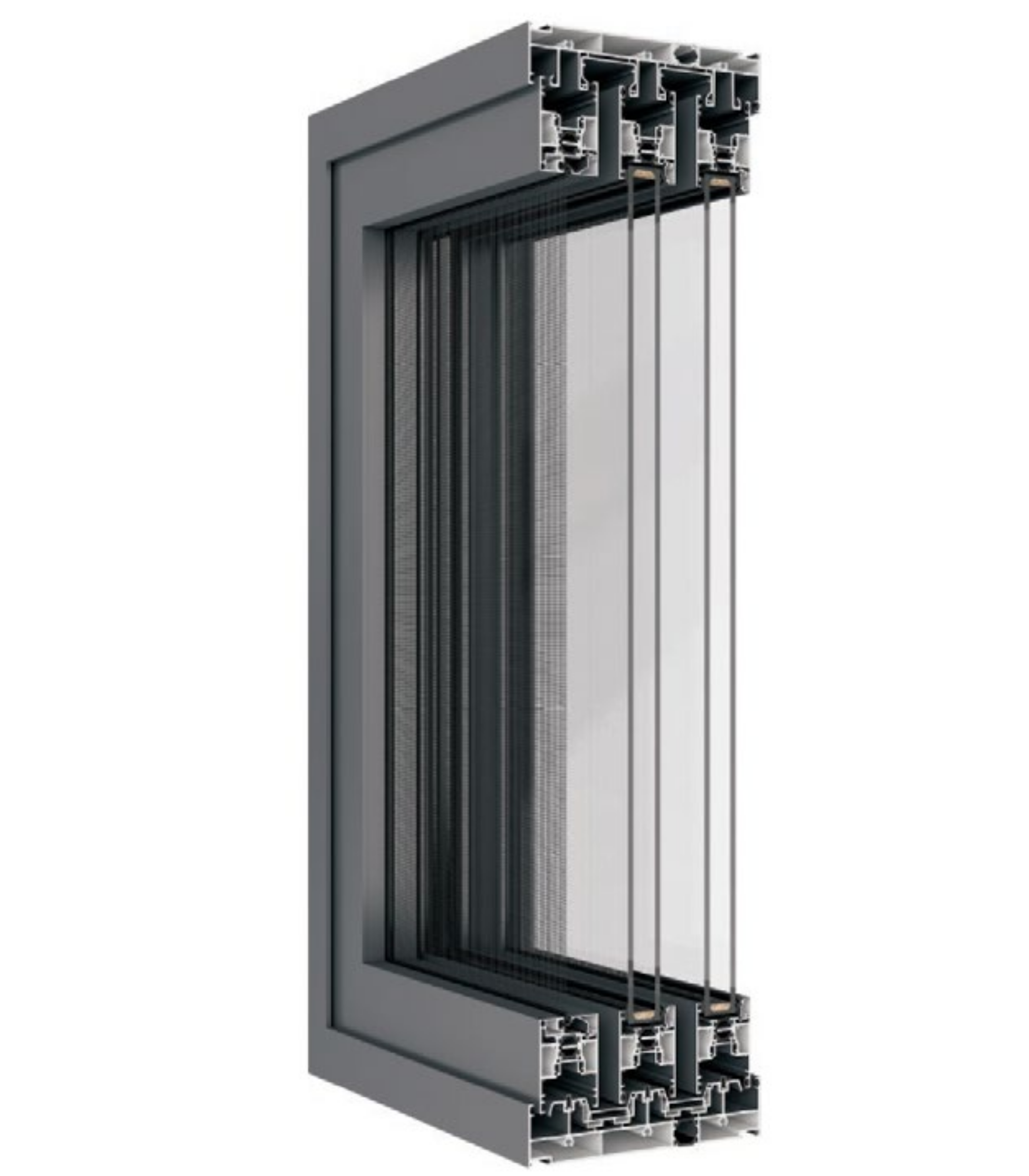

The VLX 150 is the strength-focused option in the ViewLux aluminum slider lineup. We position it for Fresno homeowners who want large spans of glass, multi-panel configurations, and hardware that does not sag or bind after a few Central Valley summers. The frame is a full 2.95 inches wide with a 0.118-inch wall thickness. That is a serious aluminum extrusion. If you’ve ever pushed a cheap vinyl slider that flexes in the middle, or an aluminum door that scrapes after two years, the difference here is immediate.

The series works well on modern ranch homes in northeast Fresno, on mid-century remodels in the Tower District, and on new custom builds up near Woodward Park. The multi-track options (2-track, 3-track, 4-track) make it flexible enough to configure as a two-panel slider, a three-panel pocket, or a four-panel stacking wall. Stainless steel rollers and heavy-duty stainless hardware carry the panels. The engineering target here is simple: a door that opens and closes with one hand, every day, for decades.

Homeowners choose the VLX 150 over lighter sliders when the opening is wide, the glass is heavy, or the door will see daily traffic. It is also a common choice for second-story decks and south-facing living rooms in Fresno, where sun load and wind exposure punish weaker frames. We’ve installed this exact series in neighborhoods from Sunnyside to Harlan Ranch, and the product holds up to the climate.

Every VLX 150 we install in the Fresno area includes a custom quote based on your exact opening size, panel count, and glass package. Call (559) 272-4716 and we’ll walk the site with you.

Technical Specifications

The specs below are the numbers that matter for a heavy-duty sliding door. We’re listing them here so you can compare the VLX 150 against anything else you’re pricing.

• Wall thickness: 0.118-inch aluminum extrusion, which adds rigidity across long spans.

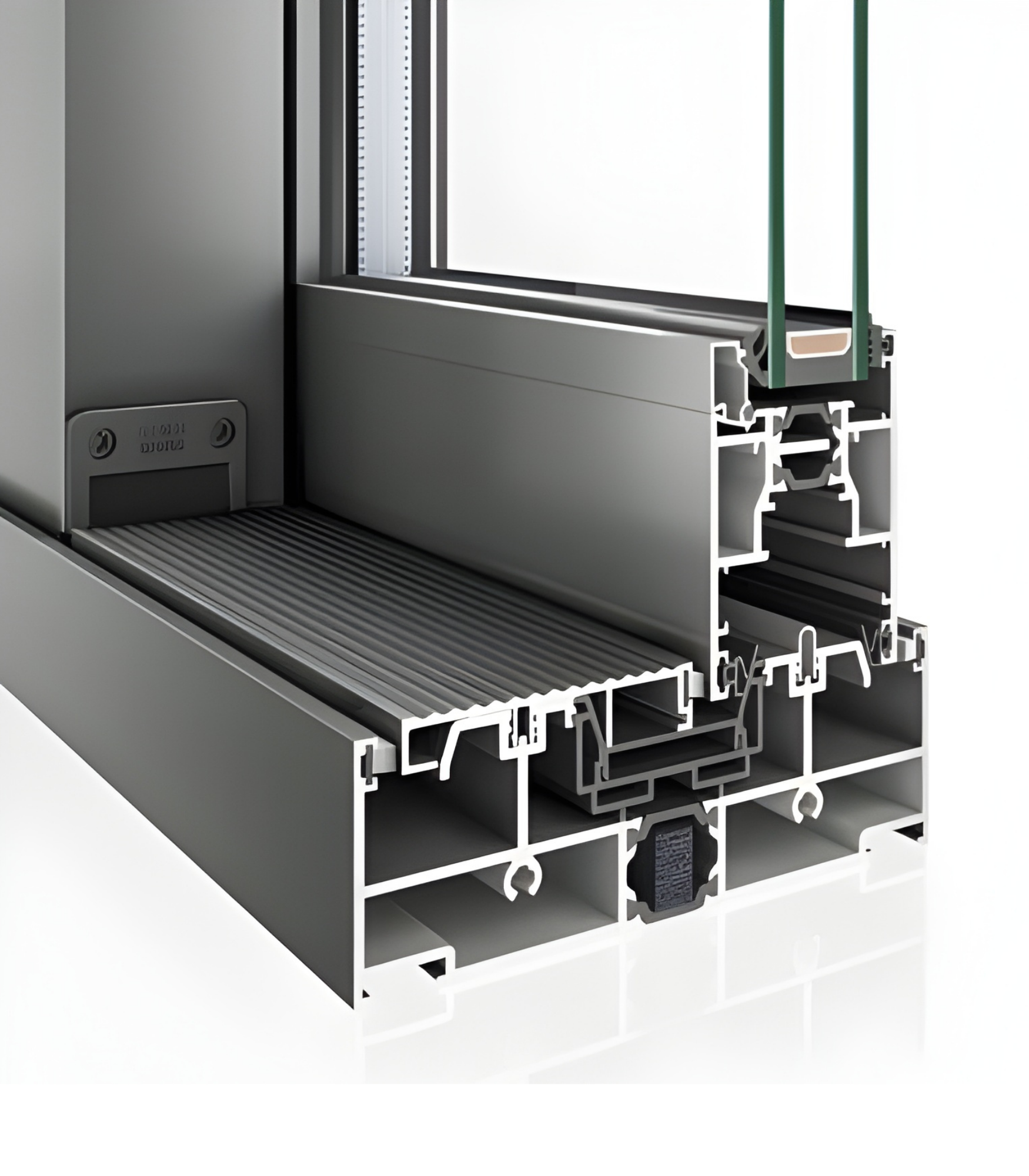

• Profile width: 2.95 inches, giving the frame the depth needed for multi-track runs and heavier glass.
• Maximum span: Up to 24 feet wide, depending on panel count and track configuration.

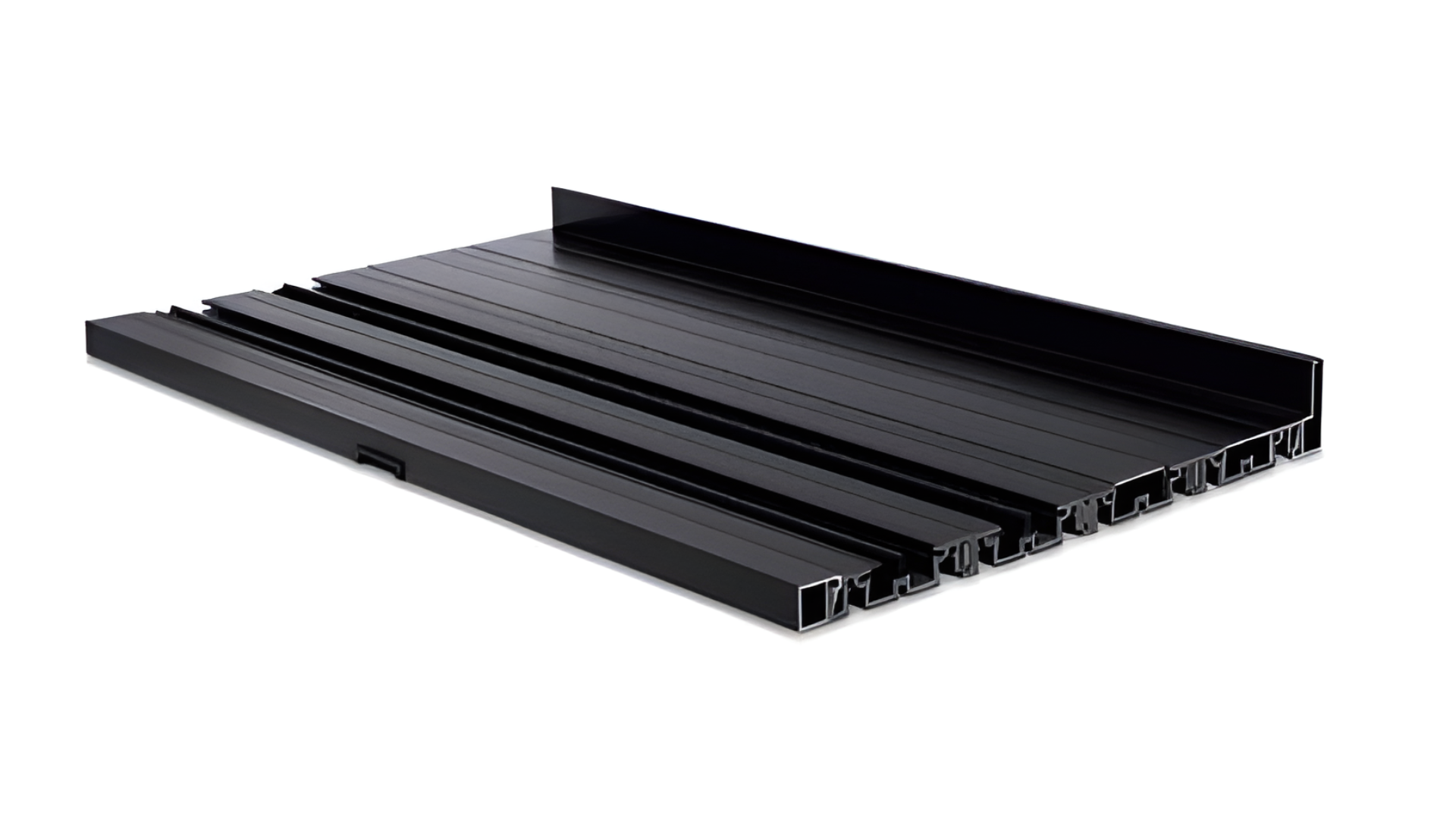

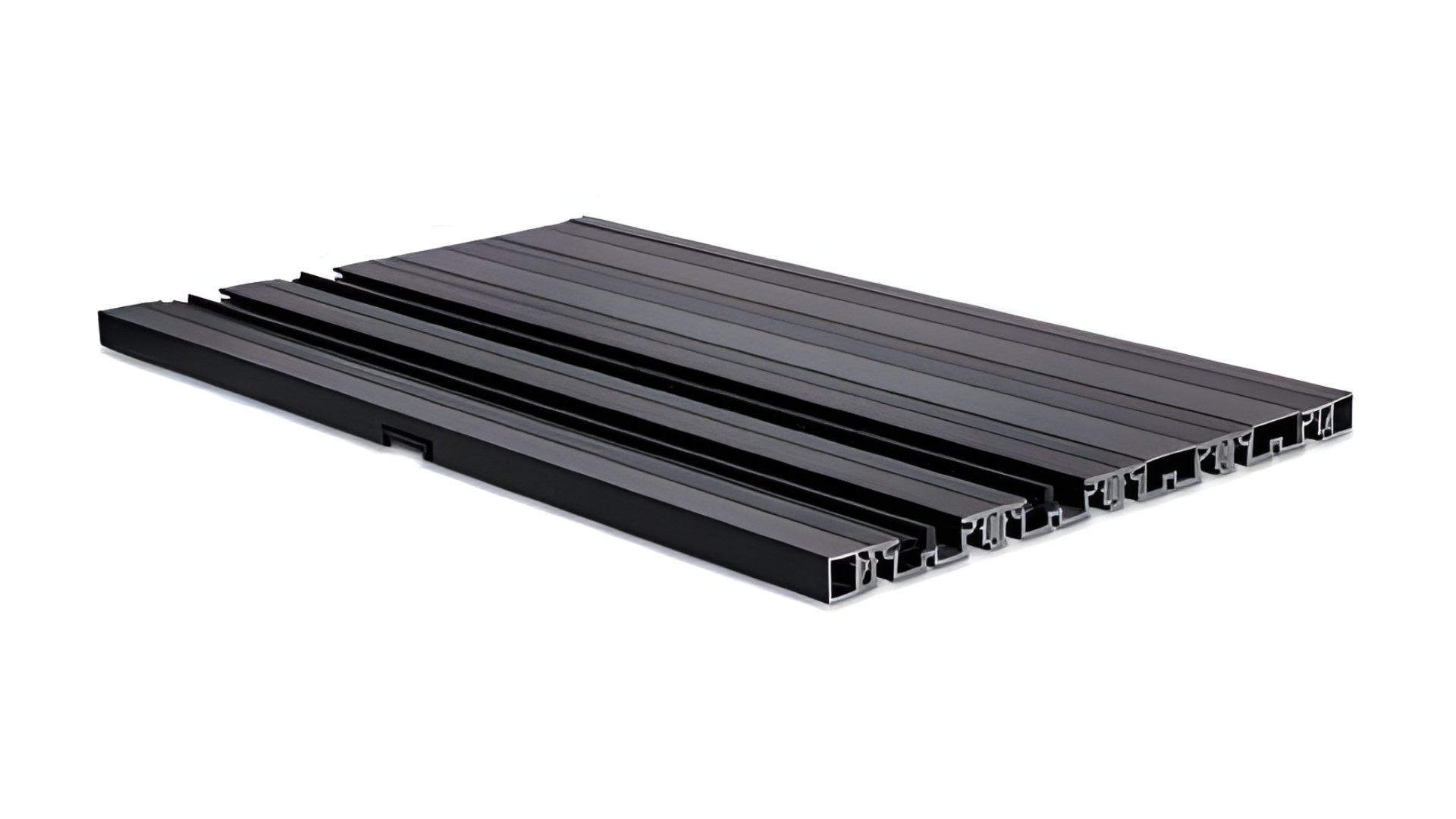

• Track configurations: 2-track, 3-track, and 4-track systems for two to four sliding or stacking panels.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable Screen, Sliding Screen.
• Performance compliance: NFRC-rated thermal break technology; AAMA 2400/2410 installation standard; AAMA 812 low-expansion foam sealant at all perimeter joints.

This is not a catalog of vague promises. These are the exact extrusion measurements, glass packages, and finish options we quote from when we build your Fresno project estimate.

Performance Features

Thermal Efficiency

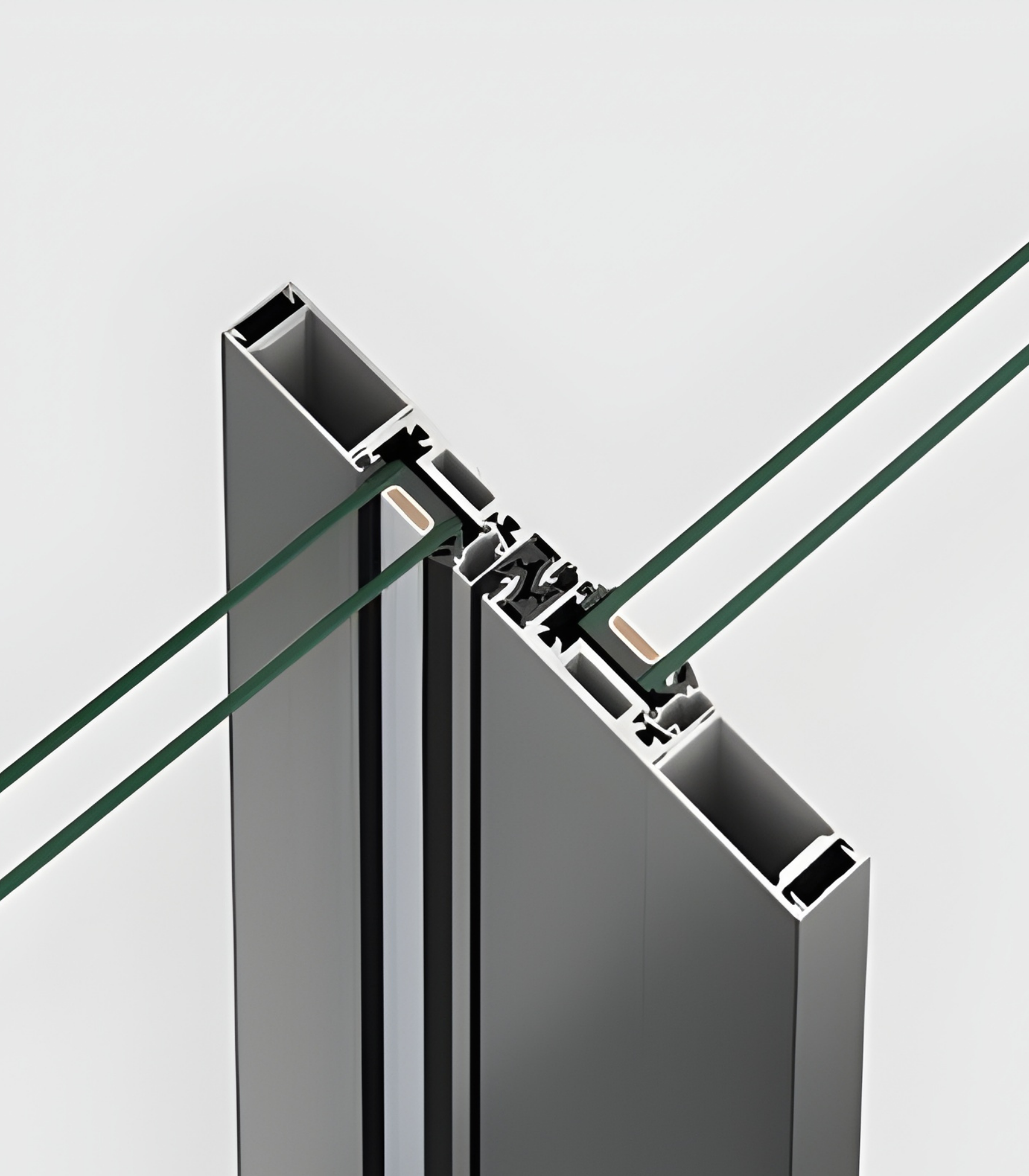

The VLX 150 uses a thermal break system rated under NFRC protocols. For Fresno, where summer afternoons regularly cross 100 degrees, this keeps the interior frame surface from acting like a radiator. Low-E glass options take the energy performance further by cutting solar heat gain while keeping natural light.

Acoustic Performance
If you live near Highway 41, the 99 corridor, or a busy street in Clovis, the sound control rating on this door matters. Laminated glass is the single biggest upgrade for noise reduction, and the VLX 150’s frame depth supports it without issue. We have installed this door on homes near train tracks in old Fresno neighborhoods, and the difference inside is significant.

Airtightness & Weather Seal

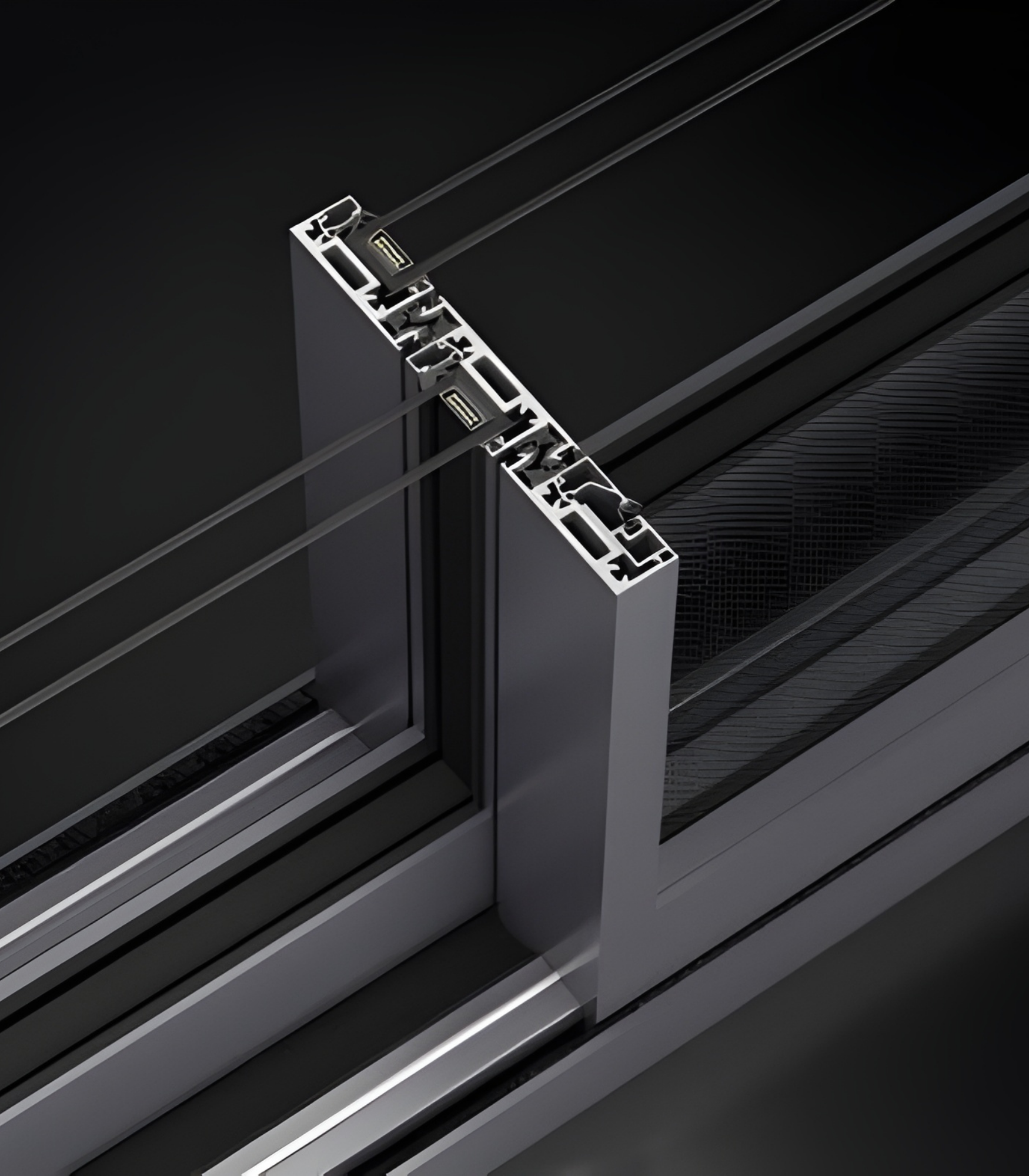

The interlocking panels and continuous perimeter gaskets are designed to stop air infiltration. On windy days in the San Joaquin Valley, dust and air leaks are the mortal enemy of indoor comfort. The VLX 150’s sealing system is built to combat exactly that. Installation per AAMA 2400/2410 standards means the opening is also sealed correctly around the frame, which is where many installs fail.

Waterproofing

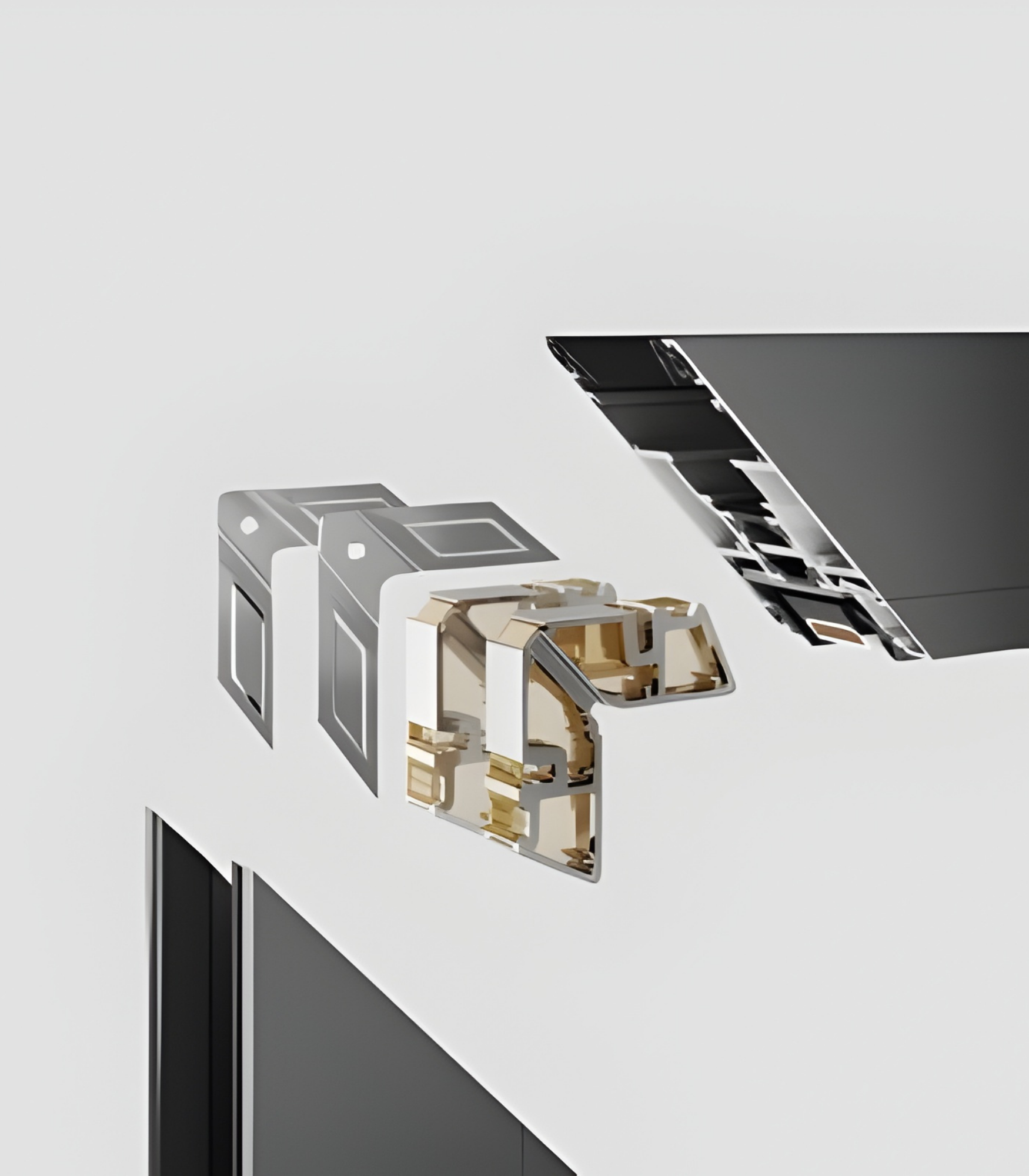

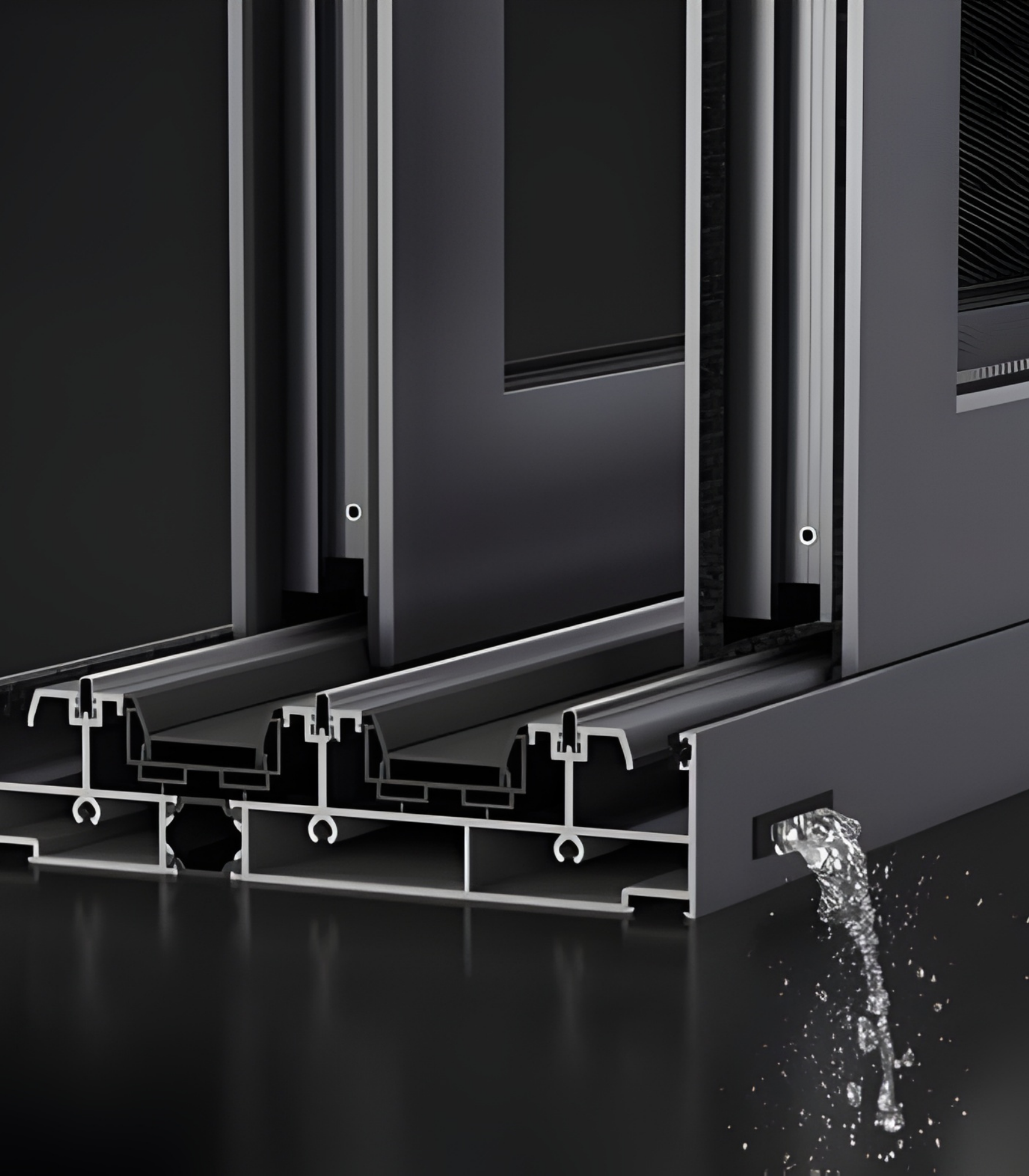

Every joint where the frame meets the rough opening gets AAMA 812 low-expansion foam sealant. This is not optional. It prevents water intrusion at the corners and sill, stops condensation from wicking into the wall cavity, and blocks the kind of slow moisture damage that shows up years later in Fresno homes. The VLX 150’s sill design includes drainage channels that route water away from the interior floor.

Wind Resistance
Heavy glass panels act like a sail when the wind hits them. The 0.118-inch wall thickness and 2.95-inch profile depth are what let this door hold large panels without bowing or rattling. Wind-load ratings are checked against local Fresno climate requirements at bid time, so you do not end up with a door that flexes when the Delta breeze kicks up or when winter winds come through.

Security & Hardware
The stainless steel rollers and hardware on the VLX 150 are a meaningful step up from what you see on mid-grade sliders. Multi-point locking is available. Laminated glass adds a security layer that holds together under impact, which is a serious deterrent on ground-level openings. The panel weight itself is also a deterrent; these are not doors you can lift off a rail with a pry bar.

Color & Glass Options

The six finishes cover most of what we see in Fresno design work. Premium Black is the current top request for modern farmhouse and contemporary builds in the Clovis and Woodward Park areas, and it pairs cleanly with white stucco or board-and-batten siding. Pure White disappears into traditional interiors and reads crisp on Spanish-style homes around Tower District. Anodized Silver is a natural match for mid-century modern restorations. Bronze and Champagne are quieter, warmer metal tones that suit Tuscan and Mediterranean elevations better than a stark black ever will. Teak Wood is a wood-grain finish for homeowners who want warmth without maintaining real wood in a climate that chews through timber frames.

On glass, Clear is the budget option, but we rarely recommend it for west-facing Fresno openings. Low-E is the workhorse: it cuts radiant heat in summer and helps with cooling bills. Tempered is required by code in many door applications for safety. Laminated is what we push for noise control, impact resistance, and security. Gray Tint and Black Tint are aesthetic choices that also knock down glare, and they read especially well on modern homes with black frames. Tell us your priority, and we will match the glass to it. Call (559) 272-4716 for help narrowing it down.

Installation by Meridian Windows and Doors Fresno in Fresno

An expensive door installed wrong is an expensive problem. We see it often enough in Fresno: sliding doors that bind, tracks that pool water, frames that leak air because the installer used cheap foam or skipped the perimeter seal. With the VLX 150, an improper installation can void the manufacturer warranty, and we’ve been called in to fix installs by other contractors more times than we can count.

Our process starts with a pre-install inspection of the rough opening. We check dimensions, level, plumb, and the condition of the surrounding framing before anything gets ordered to final size. We confirm that the header is properly supported for the panel weight and span. In Fresno, where older homes in neighborhoods like Huntington Boulevard or Sunnyside have settled and shifted, that inspection step catches problems before they become expensive change orders.

On install day, we set the frame level, plumb, and square. This is not optional. A frame that is off by a quarter-inch will produce a door that slides open on its own, binds at the strike, or fails to seal at the top corner. We shim precisely, fasten to the correct schedule, and seal every perimeter joint with AAMA 812 low-expansion foam. That foam choice matters in Fresno’s climate; it handles the expansion and contraction our hot summers and cool winters cause without tearing the seal or deforming the frame.

We install to AAMA 2400/2410 standards, which exist for a reason: they describe what a proper window and door installation actually is. After sealing, we run a water test on the sill and lower corners, then re-check operation with all panels hung. We clean up the site, haul off the old door if needed, and walk you through operation and lock function before we leave.

Meridian Windows and Doors Fresno is an authorized ViewLux installation partner. That means we have the training to install these doors correctly, we have access to factory support when needed, and the warranty on your VLX 150 stays valid because it was installed by an approved installer. Call (559) 272-4716 to schedule an installation consultation.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

What is the lead time for the VLX 150 Heavy-Duty Sliding Door?
Lead times typically run four to eight weeks from final measurement approval, depending on finish selection, glass package, and panel configuration. Custom finishes and laminated glass add time. We lock the lead time into your quote so you can plan. Call (559) 272-4716 for current production schedules.

Does the VLX 150 qualify for energy tax credits?
The VLX 150 with Low-E glass may qualify for available energy-efficiency incentives, because the thermal break system is NFRC-rated. Eligibility depends on the specific glass package, your utility provider, and the current federal or state program rules. We can help you confirm qualification before you commit. Call (559) 272-4716 to discuss your glass options.

What warranty comes with the Heavy-Duty Sliding Door?
The VLX 150 carries a ViewLux manufacturer warranty, and coverage depends on the door being installed by an authorized partner. Meridian Windows and Doors Fresno is an authorized installer, so your warranty stays intact. We also back our labor with our own workmanship warranty. Call (559) 272-4716 and we will walk you through the specifics in writing.

Can I customize the size?
Yes. The VLX 150 is built to your opening dimensions, not cut down from a stock size. Panel widths, heights, and track configurations (2-track, 3-track, or 4-track) are all tailored to your project, up to a 24-foot maximum span. Call (559) 272-4716 to schedule a free measurement.

How do I maintain aluminum frames?
Maintenance on the VLX 150 is simple: wipe the tracks with a dry cloth or vacuum, keep the weep holes clear of debris, and clean the powder-coated or anodized finish with mild soap and water. Avoid abrasive cleaners. Every spring in Fresno, check the rollers for grit accumulation from our dry, dusty season. A quick cleaning keeps the door gliding like new. Call (559) 272-4716 if you ever need service or replacement parts.

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Fresno

The fastest way to get an accurate price on the VLX 150 for your Fresno home is to let us measure the opening and walk the site with you. We will put together a written quote with line-item pricing and no surprises. Call (559) 272-4716 to schedule your free on-site measurement, or to ask us anything about this door.

Written by Meridian Windows and Doors Fresno, serving Fresno, CA and the surrounding Central Valley.
