VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Fresno, CA | Meridian Windows and Doors Fresno

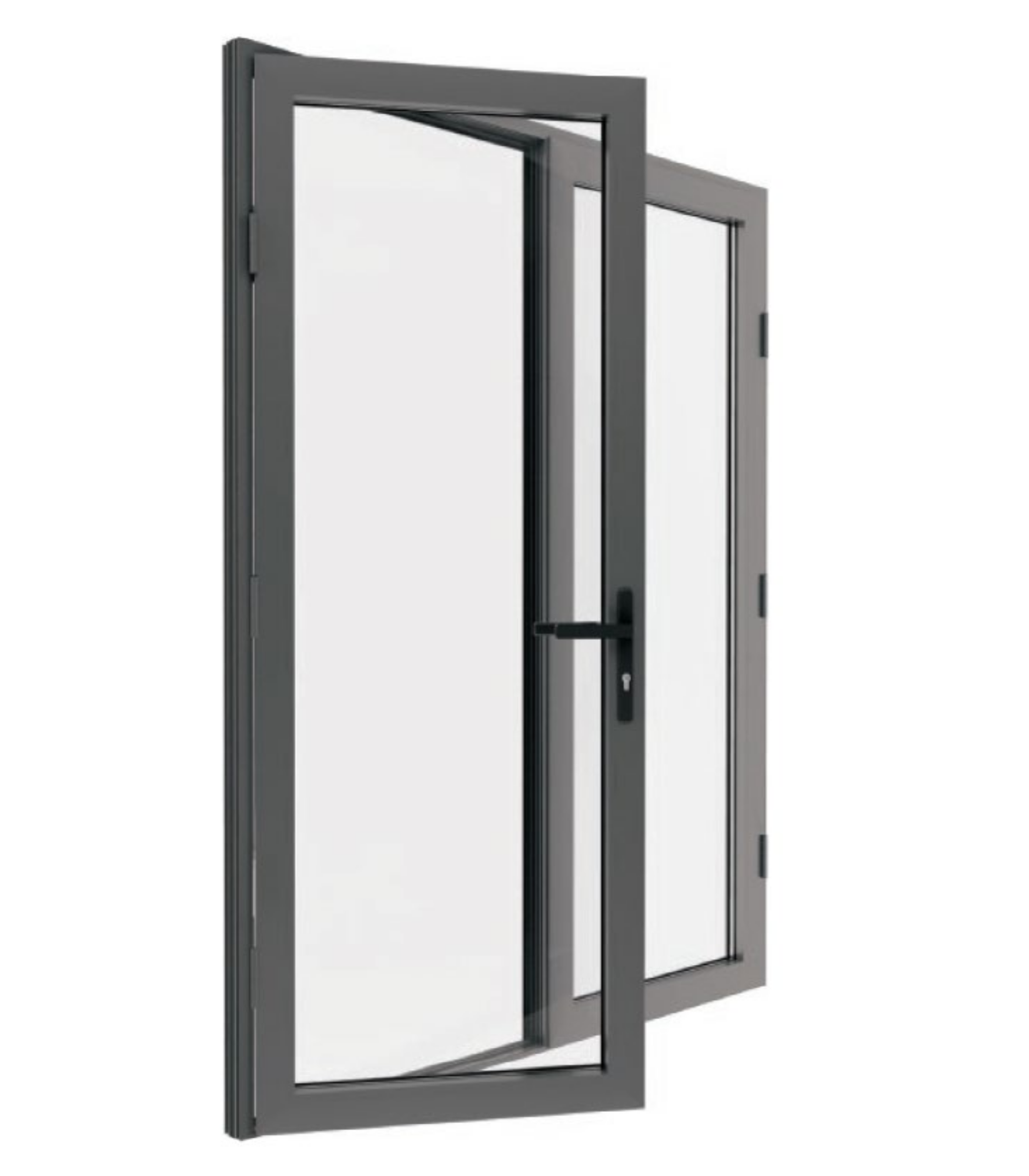

The VLX 100 Double Swing door is a paired aluminum French door system built around one idea: both panels should look exactly the same. Symmetrical sightlines, a flush threshold you can walk across without tripping, and multi-point lock hardware that anchors the door at the top, bottom, and center. We install this product throughout Fresno, Clovis, and the surrounding Central Valley, and because we’re an authorized ViewLux installation partner, you get the product exactly as engineered, with the warranty fully intact. If you’re planning a patio opening, a courtyard entry, or a living-room-to-backyard transition, this is the door worth pricing first. Call (559) 272-4716 for a free project quote.

Call (559) 272-4716

Product Overview – VLX 100 Double Swing / French Door

The VLX 100 Double Swing is the product Fresno homeowners ask us about when they want a true French door, not a sliding panel that happens to have glass. Both leaves swing, and both leaves are built identically. There’s no fixed side, no unequal panel, no compromise in the sightline. When you look at the door, the vertical frame lines match left to right, top to bottom. That symmetry is harder to achieve in aluminum than most people realize, and it’s the reason this series reads as high-end the moment it’s installed.

Architecturally, this door fits anywhere a pair of hinged doors make sense: a primary patio exit, a dining room opening onto a covered porch, a master suite leading to a private garden. Fresno’s housing stock ranges from mid-century ranches in Fig Garden to newer builds in Woodward Park and Spanish-influenced homes in the Tower District. The VLX 100’s clean aluminum profile works with all of them. The frame carries a 2.56-inch profile width, which is substantial enough to hold the multi-point hardware without looking bulky.

Material choice matters here. Aluminum doesn’t warp the way wood does after five or six Fresno summers of 100-plus degree heat and single-digit winter humidity. Paint doesn’t peel. Panels don’t swell in the wet season and stick in the dry season. What you buy on day one is what you’ll have at year fifteen. The structural wall thickness of the aluminum extrusion is 0.098 inches, which gives the door its rigidity across wide openings.

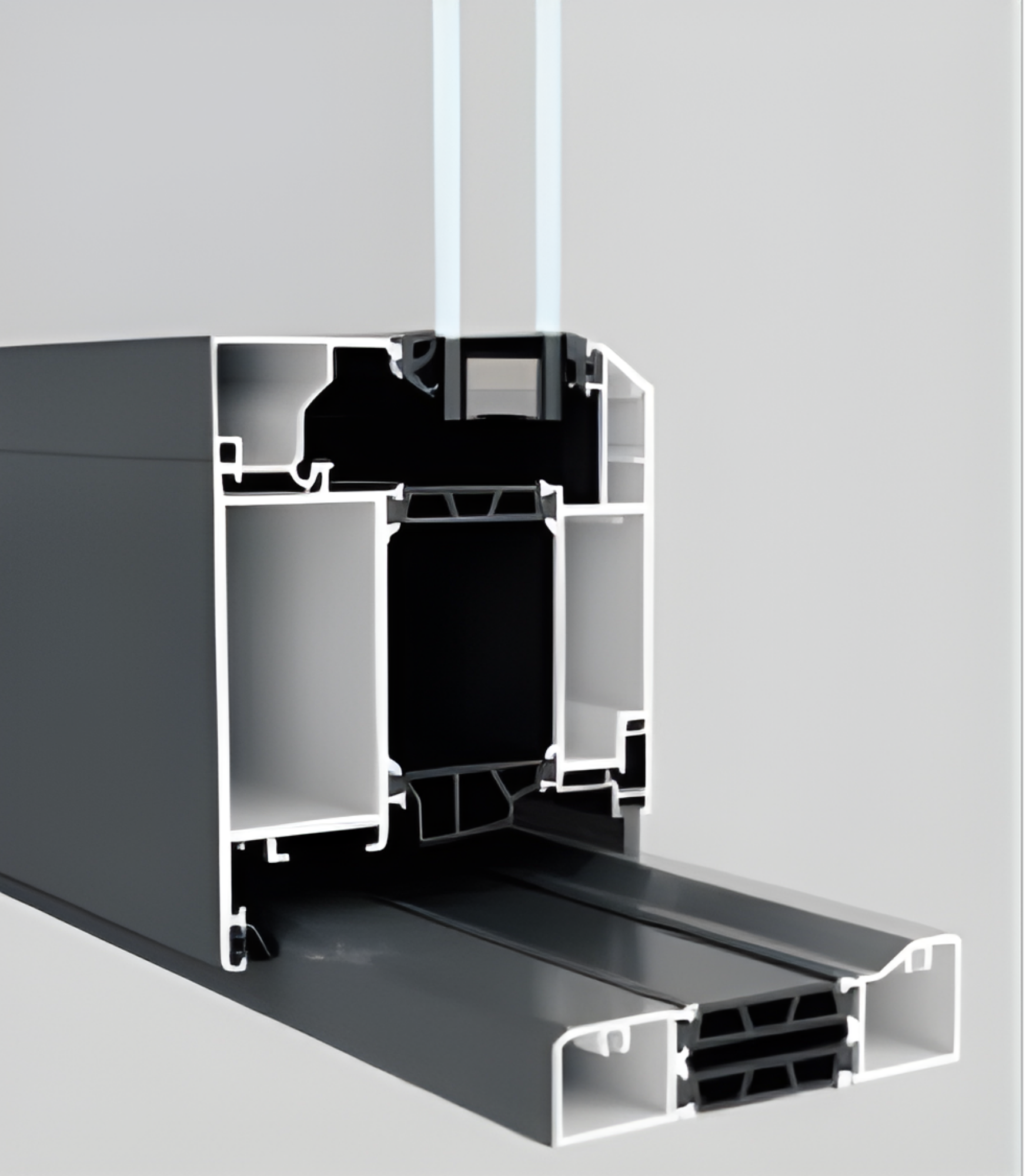

The flush threshold deserves its own mention because it solves a real daily problem. Most French doors have a raised sill you step over every time. This one sits nearly level with the floor, so a stroller rolls through, a walker passes without a catch, and nobody stubs a toe carrying groceries in from the garage. That detail alone makes the VLX 100 a better option than older wood French doors you’ll find in many Fresno homes built before 2000. Call (559) 272-4716 and ask us about viewing a sample in person.

Technical Specifications

Here’s what the VLX 100 Double Swing is made of, in plain numbers and plain language. These are the specs we quote when a homeowner or builder asks for the details that go into the estimate.

• Frame profile width: 2.56 inches, giving the door its clean, modern sightline and supporting the heavier glass packages.
• Aluminum wall thickness: 0.098 inches, a step up from entry-level aluminum doors, which matters for long-term rigidity and hardware anchoring.
• Maximum span: Up to 96 inches wide across the opening, which means a true 8-foot double swing is possible without a center post.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, and Laminated. Any can be combined where code or preference requires it.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Six finishes, powder-coated or anodized depending on the color.
• Screen options: Retractable screen or none. The retractable option rolls out of sight when the doors are open.

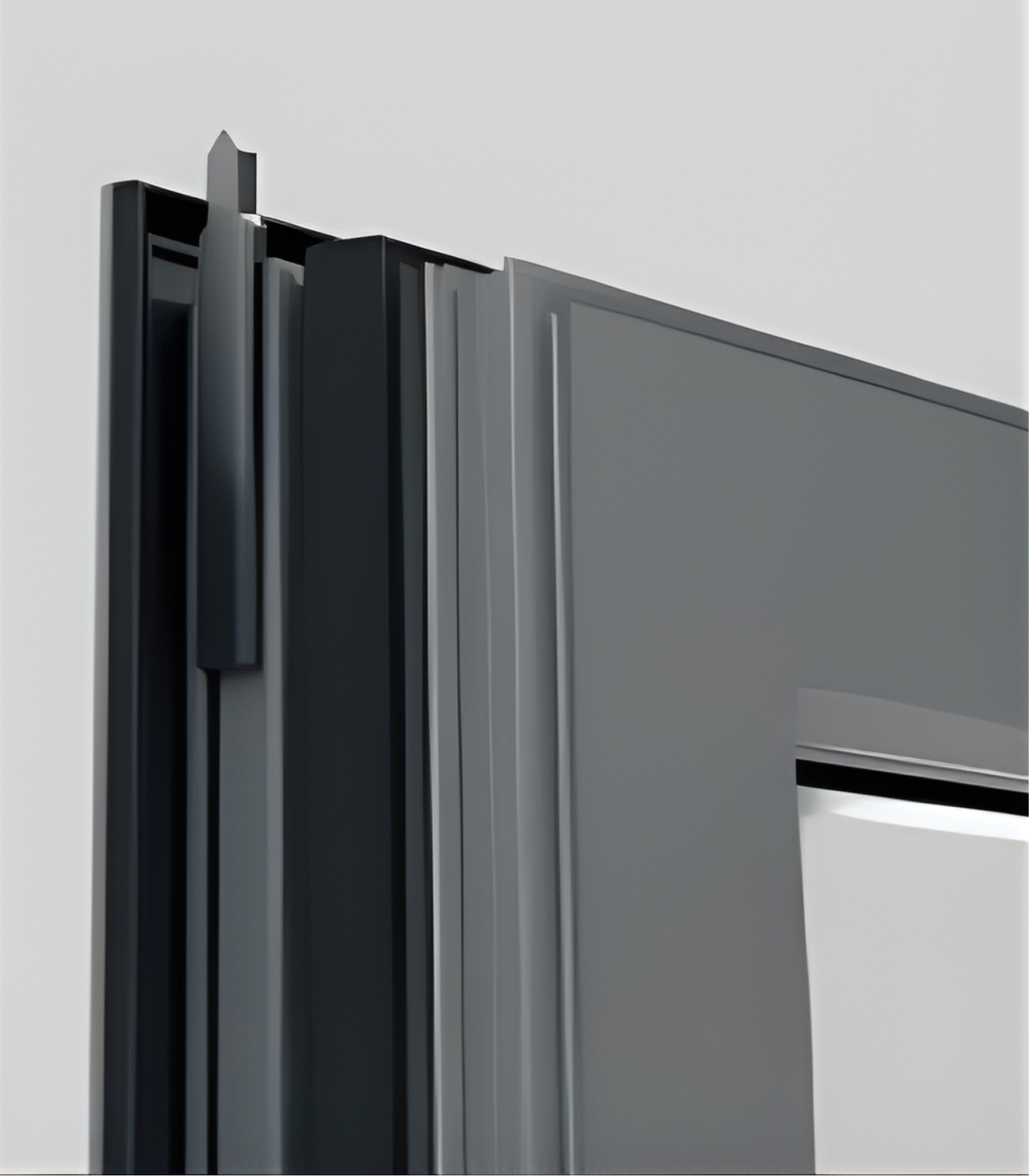

• Hardware: Multi-point locking, engaging at the top, bottom, and center of the active panel with a single throw of the handle.

Performance Features

These are the six areas where aluminum door systems earn their price or lose it. The VLX 100 is built to perform across all of them, and we install it to the standard the ratings assume.

Thermal Efficiency

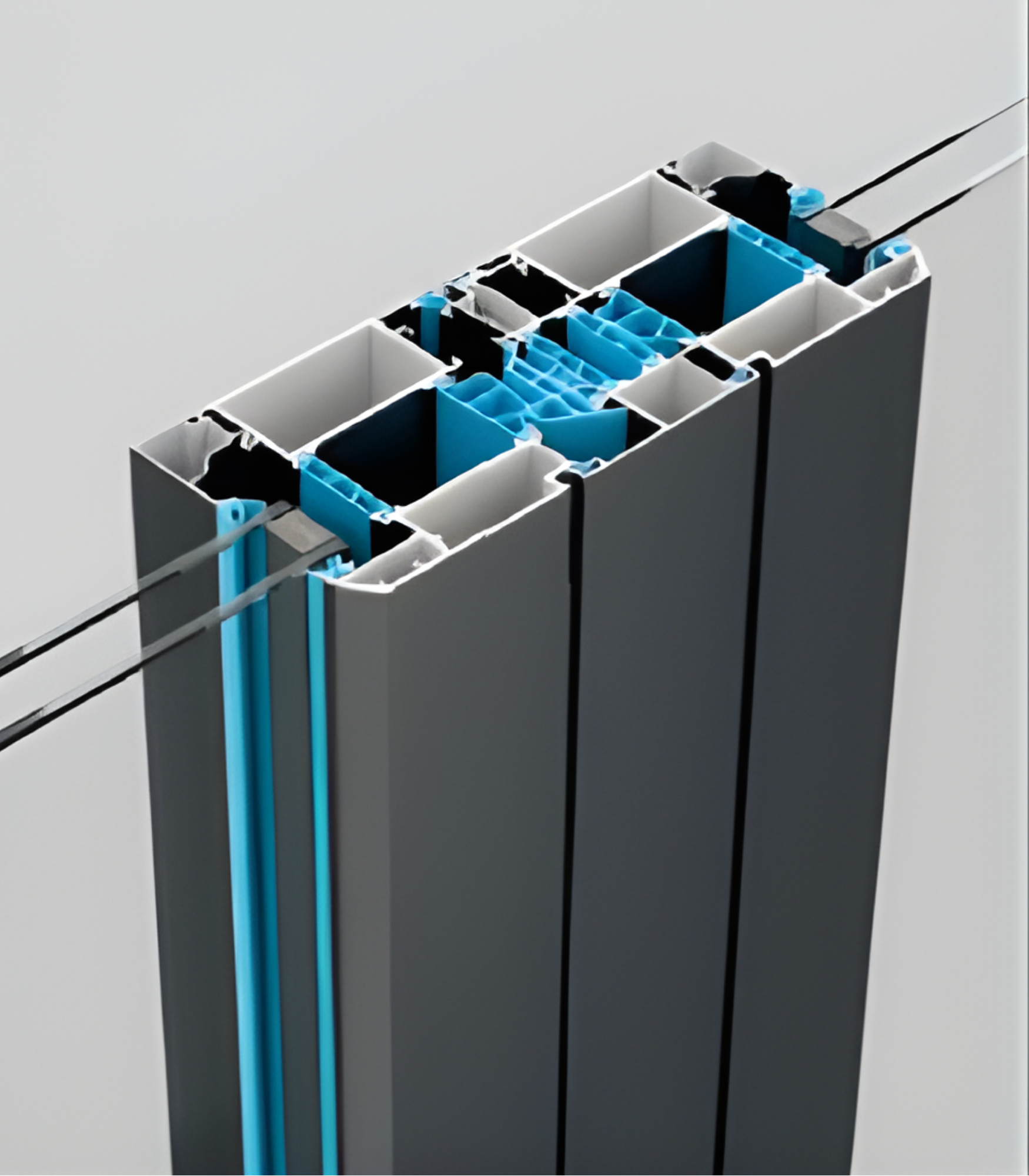

Aluminum conducts heat, which is why the VLX 100 uses thermal break technology, a non-conductive barrier inside the frame that stops Fresno’s summer heat from traveling through the metal into your living room. The system carries NFRC-rated energy performance, which means the numbers are third-party verified, not a marketing claim. That matters when the AC bill comes in August.

Acoustic Performance

If you live near Highway 41, the 168 corridor, or a busy street in central Fresno, you already know how much glass quality affects indoor noise. The VLX 100’s airtight frame and glass options, particularly laminated glass, cut sound transmission in ways a single-pane slider simply cannot. Neighbors’ leaf blowers get quieter. Conversation inside gets easier.

Airtightness & Weather Seal

Every opening in a house leaks some air. This door is engineered to leak as little as the standard allows. We install it with AAMA 812 low-expansion foam sealant on all perimeter joints, which is the same standard commercial buildings are held to. The result is a seal that holds against Fresno’s hot, dusty summers and wet winter fronts.

Waterproofing

Water intrusion is the slow killer of door installations. A bad threshold seal lets water under the frame and into the subfloor, and you won’t see it until the damage is done. The VLX 100 uses a structural threshold design that channels water away from the interior, and our installation includes a water test after the door is set. In a city that goes months without rain and then gets a week of heavy storms, that matters.

Wind Resistance

Fresno isn’t a coastal hurricane zone, but the Central Valley does get strong gust fronts, particularly in the spring and fall. The VLX 100 is wind-load rated for local climate requirements, meaning the frame, glass, and hardware are engineered to stay rigid when the pressure spikes. If you’re in an exposed neighborhood like the newer subdivisions on the northwest side, this is a spec worth confirming.

Security & Hardware

French doors have a reputation as an easy entry point for burglars, mostly because older models had a single latch at the handle. The VLX 100’s multi-point lock changes that. Three engagement points in the active panel, plus the bolted connection on the passive panel, make prying the door far more difficult. For homeowners who want more, impact-resistant laminated glass is available, which holds together even if struck.

Color & Glass Options

The VLX 100 Double Swing comes in six finishes, and the right choice depends on the style of the home and the look of the surrounding windows and exterior trim.

Premium Black is the choice for modern farmhouse and contemporary exteriors, a look that’s everywhere in new Fresno construction east of Clovis. Pure White suits traditional and Spanish-style homes and matches most white vinyl window grids already in place. Anodized Silver is a natural aluminum finish that reads commercial-grade and works on mid-century homes. Bronze brings warmth to brick and stucco, which covers most of the housing stock in the central Fresno neighborhoods. Champagne is a subtle, warm metallic that photographs beautifully at golden hour, which is a real consideration on a west-facing patio. Teak Wood gives you the grain appearance of wood with the durability of aluminum, ideal for a home transitioning from painted wood trim.

Glass selection comes down to privacy, energy, and safety. Clear maximizes the view and is the default. Frosted and Obscure give privacy for doors facing a side yard or a neighbor’s window. Low-E cuts solar heat gain and is a smart choice for any door facing south or west in Fresno’s climate. Tempered glass is required by code in doors anyway, but confirms it’s safety-rated. Laminated glass adds security and sound control, the upgrade we recommend for anyone combining this door with a home office or a nursery nearby.

Installation by Meridian Windows and Doors Fresno in Fresno

We’ll say it plainly: a poorly installed high-performance door performs like a cheap door. The manufacturer’s warranty on the VLX 100 Double Swing assumes the installation meets the standards the product was designed around. Meridian Windows and Doors Fresno installs to those standards, every time, on every job from a single door in a Tower District bungalow to a multi-opening new build in the foothills east of Clovis.

Our process starts before the old door comes out. We inspect the rough opening for rot, termite damage, and out-of-square framing, three things we see regularly in Fresno homes built on clay soils that shift with the seasons. If the opening needs correction, we fix it before the new frame goes in. Then we set the door level, plumb, and square, because a door that’s out by a quarter inch will never close right, lock right, or seal right.

We install the VLX 100 per AAMA 2400/2410 installation standards, which cover the installation of exterior fenestration in a way that manages both water and air. Every perimeter joint gets AAMA 812 low-expansion foam sealant, which keeps air, dust, and moisture from migrating around the frame and into the wall cavity. Fresno’s summer dust storms will find any gap if it exists. We make sure there isn’t one.

After the door is mounted and the hardware is adjusted, we run a water test to confirm proper drainage, then remove the old door, hardware, and packaging. You shouldn’t have to schedule a separate haul-away or spend a Saturday at the transfer station. The installation is complete when the door swings, locks, seals, and the work area is clean. If you’re replacing an old French door in a Fresno home and want it done once, done right, the conversation starts with a call to (559) 272-4716.

Frequently Asked Questions – VLX 100 Double Swing / French Door

What is the lead time for the VLX 100 Double Swing / French Door?

Lead times vary based on the finish and glass package you select, but most VLX 100 orders arrive at our Fresno shop within 3 to 6 weeks of the order being confirmed. Powder-coated finishes sometimes add a week over anodized. We’ll give you a firm window when you place the order, and we schedule installation as soon as the product lands. Call (559) 272-4716 to check current lead times for the color you want.

Does the VLX 100 qualify for energy tax credits?

Whether the VLX 100 qualifies for a federal or local energy credit depends on the glass package you select and the current tax rules in effect for the year of installation. Low-E glass and NFRC-rated thermal performance give you the documentation you’d need to file. We recommend talking to your tax preparer, but we can provide the performance documents for your specific configuration. Ask us about it when you call (559) 272-4716.

What warranty comes with the VLX 100 Double Swing / French Door?

The VLX 100 carries the manufacturer’s warranty ViewLux provides to authorized installation partners like Meridian Windows and Doors Fresno. Installation also matters: a door installed by an unauthorized contractor often loses the manufacturer’s warranty because the install doesn’t meet spec. Ours does. We’ll walk through the exact terms for your configuration when we quote the project.

Can I customize the size?

The VLX 100 Double Swing can be built up to 96 inches wide across the opening, within that range there’s flexibility in panel width and height to match your rough opening. We measure the actual opening during your free on-site estimate, and the order is made to those dimensions, not the other way around. Custom sizing is standard here, not an upgrade.

How do I maintain aluminum frames?

Aluminum frames need very little: occasional cleaning with mild soap and water, plus a silicone-based lubricant on the hinges and lock points once or twice a year. Fresno’s dust and the Valley’s hard water can leave mineral deposits if sprinklers hit the door, so wipe it down when you clean your exterior windows. No sanding, no repainting, no refinishing. That’s the point of aluminum.

Get a Quote – VLX 100 Double Swing / French Door in Fresno

The smartest next step is a free on-site measurement. We’ll come to your home anywhere in the Fresno area, look at the existing opening, talk through finish and glass options, and give you a written line-item quote. No pressure, no change orders mid-job. Call (559) 272-4716 to schedule your free estimate and take the first step toward the best-looking patio door on your block.

Written by the team at Meridian Windows and Doors Fresno, authorized ViewLux installation partner serving Fresno, Clovis, and the Central Valley.
