VLX 100 Arched / Custom Door

VLX 100 Arched / Custom Door in Fresno, CA | Meridian Windows and Doors Fresno

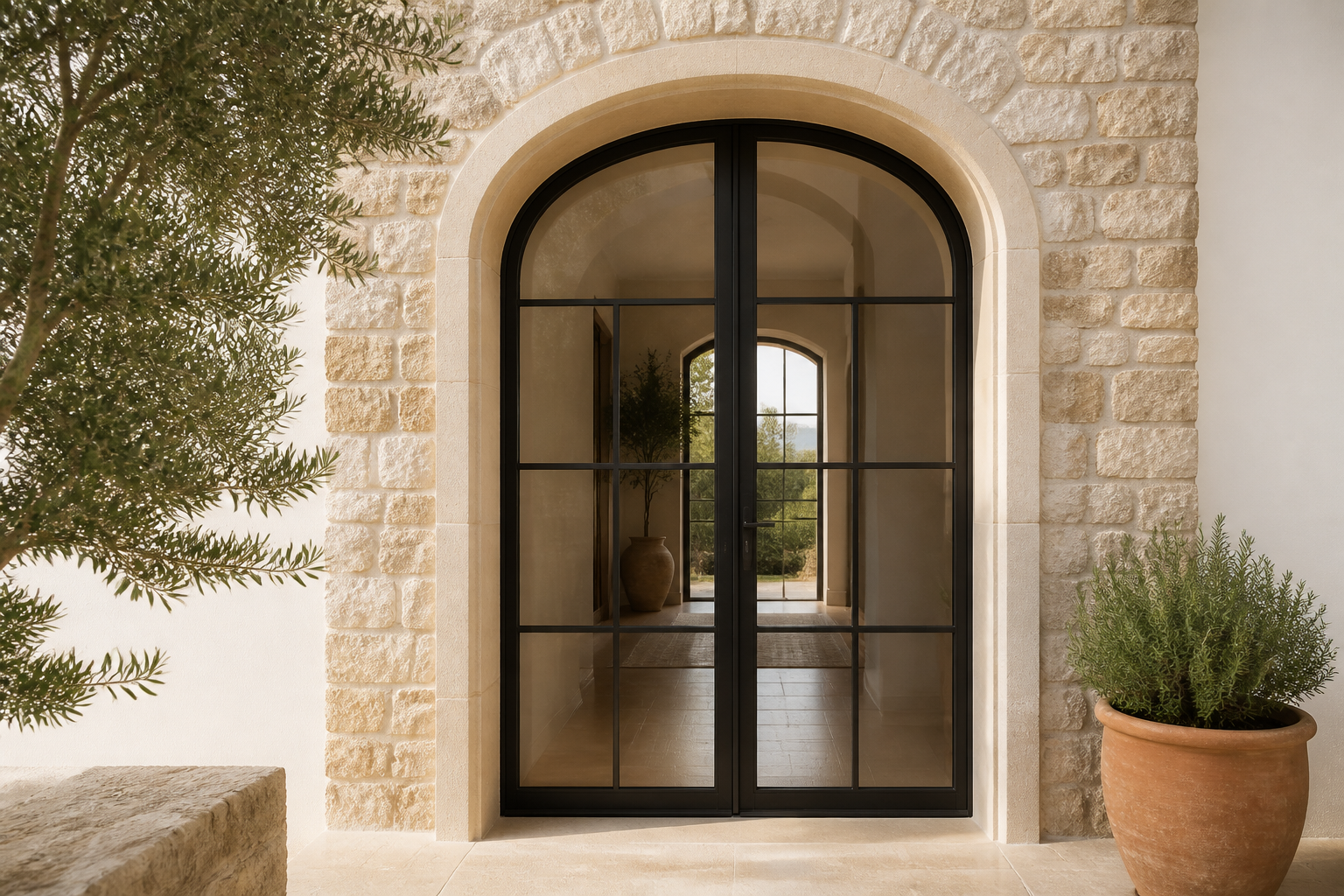

The VLX 100 Arched / Custom Door is a CNC-bent aluminum entryway built for homes where a standard rectangle simply won’t do. It’s a curved architectural statement with the structural precision that only computer-controlled fabrication can deliver. We’re Meridian Windows and Doors Fresno, an authorized ViewLux installation partner serving Fresno, Clovis, Madera, and the surrounding Central Valley. When you buy this door through us in Fresno, you get the manufacturer’s engineering plus a local installation crew that stands behind the work. Call (559) 272-4716 to talk about your project.

Call (559) 272-4716

Product Overview – VLX 100 Arched / Custom Door

The VLX 100 exists because some homes demand more than a flat header. Arched entryways show up in Spanish Revival homes in the Tower District, Mediterranean builds in Woodward Park, and custom estates up toward Millerton Lake. A rectangular door in an arched opening looks wrong, and box-store retrofit kits never quite solve it. This series is fabricated from extruded aluminum bent on CNC equipment, which means the curve is mathematically exact, not hand-formed on a jobsite brake.

What buyers in Fresno notice first is how the arch frames the entry without looking fussy. The 2.56-inch profile width gives the door visual weight without becoming a wall of metal. Wall thickness runs 0.098 inches, which sits in the sweet spot between rigidity and weight management, especially on a tall arched panel. The aluminum resists the dry heat and UV exposure that warps wood and fades fiberglass over Fresno summers. Because each unit is custom fabricated to order, the span can match whatever opening your architect or builder specified. We regularly work on arched openings spanning five, six, even eight feet across, and the door arrives in one continuous bent section rather than pieced segments.

Meridian Windows and Doors Fresno has installed ViewLux products throughout Fresno County, and the VLX 100 is the door we recommend when a homeowner wants the arch to be the first thing visitors remember.

Technical Specifications

Here’s what you’re actually getting with the VLX 100, in plain numbers our installers and your contractor can both work from:

• Wall thickness: 0.098-inch extruded aluminum, heavy enough to stay flat and true, light enough for smooth operation on pivots or hinges.
• Profile width: 2.56 inches across the frame face, chosen to support large arched spans without sagging or deflection.
• Maximum span: Custom fabricated to order. If your opening is non-standard or unusually wide, we field-measure in Fresno and order the exact unit.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated. Mix and match is available on transom sections and sidelites.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Construction: Thermal break technology throughout the frame, welded corners on the main door body, arch bent as one continuous piece.

Each door is fabricated to order, which means no stock sizing compromises. We measure first, then the door gets made, then we install it level, plumb, and square.

Performance Features

Thermal Efficiency – The VLX 100 frame carries a thermal break, meaning the inside and outside aluminum never touch. That matters in Fresno, where July afternoons push 105°F and your entry door is getting direct sun. Low-E glass options add another layer of heat rejection, and NFRC-rated performance means you can review actual energy numbers rather than trusting marketing claims.

Acoustic Performance – Laminated glass on an arched entry door cuts street noise noticeably. For Fresno homes near Blackstone, Shaw, or the 41 corridor, that’s real quality of life. The door’s mass, combined with continuous perimeter seals, dampens traffic and neighbor noise before it reaches your entry hall.

Airtightness & Weather Seal – We install every VLX 100 with AAMA 812 low-expansion foam sealant on all perimeter joints. This is not optional caulk from a tube at Home Depot. AAMA 812 is a specific standard for polyurethane foam, rated for the kind of movement aluminum frames see during Central Valley temperature swings from 35°F winter mornings to triple-digit summer afternoons.

Waterproofing – A poorly installed arched door leaks at the top of the arch, and by the time you see water staining interior drywall, the damage is already done. Our install method includes a sill pan where the opening allows, full perimeter sealing, and a final water test before we call the job done. Water intrusion prevention is not an add-on for us; it’s the point.

Wind Resistance – Fresno gets its share of gusty Delta breeze events and occasional strong winter storm fronts. The VLX 100 is wind-load rated for our local climate requirements, and the 0.098-inch wall stock gives the arched section the stiffness it needs to resist flexing under pressure. On wide openings, the thermal break does not compromise structural performance.

Security & Hardware – A front door that looks custom should lock like it means it. We spec multi-point locking where the arch configuration allows, and laminated glass is available for homes that want impact resistance and forced-entry deterrence. Your arched entry stays beautiful, and it stays shut until you open it.

Color & Glass Options

Six finishes cover nearly every architectural style we see in Fresno. Premium Black reads modern and sharp, especially against stucco, a look that works well in newer northeast Fresno builds. Pure White suits the California traditional homes in Fig Garden and the Bluffs. Anodized Silver is the honest-metal choice that ages without peeling, because the finish is in the aluminum, not on it. Bronze gives warmth without going full wood, and pairs well with Spanish tile roofs. Champagne is the understated choice when you want something lighter than bronze but not as stark as white. Teak Wood is a wood-grain finish for buyers who want the look of timber with the zero-maintenance reality of aluminum.

On glass, Clear lets maximum light into an entry hall. Frosted and Obscure give privacy while keeping the opening luminous, ideal for front doors facing the street. Low-E is our default recommendation in Fresno for heat rejection. Tempered glass meets safety code for doors and sidelites. Laminated adds both impact resistance and sound damping, and it’s the glass we suggest for homes on busier Fresno streets.

Installation by Meridian Windows and Doors Fresno in Fresno

Here’s the thing about arched doors. The manufacturer warranty covers the door. It does not cover a bad installation. We’ve seen ViewLux and similar units ruined by installers who forced an arched door into an out-of-square rough opening and sealed the gap with whatever caulk was in the truck. In Fresno’s climate, that fails within a season or two. Heat expands the aluminum, the arch flexes, the seal breaks, and the homeowner has a leak they can’t trace.

Our process is built so that never happens. We start with a pre-install inspection of the rough opening: we check the opening dimensions at three points vertically and horizontally, verify the header is level, and confirm the arch radius matches the door you ordered. If the opening is out of spec, we tell you before the door comes off the truck. On install day, we set the door level, plumb, and square, shimming behind hinges and at the arch apex where needed. Every perimeter joint gets AAMA 812 low-expansion foam sealant, applied to the manufacturer’s performance standard. That foam is rated for aluminum movement and won’t shrink or crack the way basic expanding foam does after a few Fresno summers.

We install to AAMA 2400/2410 requirements, which is the industry standard for exterior fenestration installation. That standard covers the details most crews skip: drainage plane continuity, sill flashing, and jamb sealing. When the door is in, we run a final water test and check operation at multiple points along the sweep. You don’t hear about any of this stuff when it’s done right, and that’s the point. We’re a Fresno company, our installers live here, and our reputation walks through every arched entry we’ve installed.

Frequently Asked Questions – VLX 100 Arched / Custom Door

Get a Quote – VLX 100 Arched / Custom Door in Fresno

If you’re planning an arched entry in Fresno, Clovis, or anywhere in the Central Valley, start with a conversation. We’ll come out, measure the opening, show you finish and glass samples in person, and give you a written line-item quote with no surprise change orders. Call (559) 272-4716 to schedule your free on-site measurement.

Written by the team at Meridian Windows and Doors Fresno, authorized ViewLux installer serving Fresno, CA and surrounding Central Valley communities since 1999.
